Name: 10kA Dữ liệu camera quan sát SPD Bộ bảo vệ chống sét giám sát video Tăng đột biến Thiết bị đầu cuối RJ45
Brand: BRITEC
SKU: BR-CCTV-21M
Price: 1 USD
Availability: InStock
Rating: 4.7 (125 reviews)

Nhà Sản phẩm Thiết bị bảo vệ chống sét Ethernet

10kA Dữ liệu camera quan sát SPD Bộ bảo vệ chống sét giám sát video Tăng đột biến Thiết bị đầu cuối RJ45

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Trung Quốc
Hàng hiệu:	BRITEC
Chứng nhận:	CE
Số mô hình:	BR-CCTV-21M

Thanh toán:

Số lượng đặt hàng tối thiểu:	200 miếng / miếng
chi tiết đóng gói:	ĐÓNG GÓI XUẤT KHẨU
Thời gian giao hàng:	15-30 ngày sau khi thanh toán
Điều khoản thanh toán:	T/T
Khả năng cung cấp:	50000 chiếc mỗi tháng

Tiếp xúc

Chi tiết sản phẩm

:		:
:		Vật chất:	hợp kim nhôm
:		kết nối:
Băng thông:	30Mb / giây	:
:		Tu:	-40oC ... + 80oC
Điểm nổi bật:	spd bảo vệ tăng , thiết bị bảo vệ tăng thương mại

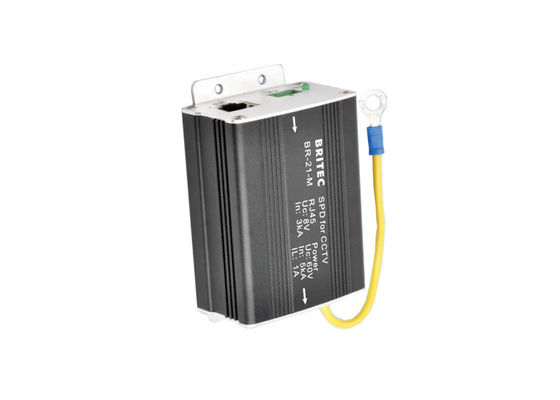

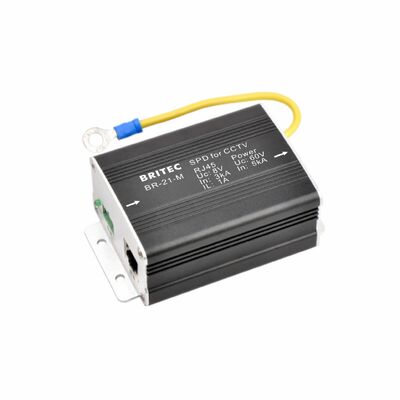

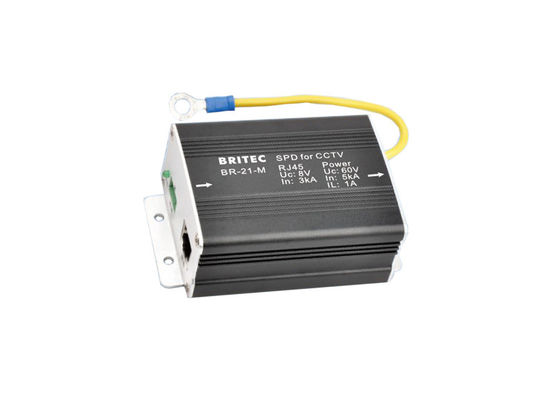

10kA CCTV Data SPD Surge Protector Video Monitoring Surge Arrester RJ45 Terminal Block

Feature:

• Low voltage surge protective device.
• Operating temperature:-40℃~+80℃.
• Designed according to IEC 61643-21 standards.

Product Details:

	CCTV-21M-48	CCTV-21M-230
Test standards	IEC 61643-21	IEC 61643-21
Max. continuous operating d.c. voltage _(RJ45)Uc	6V	6V
Max. continuous operating a.c. voltage _(RJ45)Uc	4V	4V
Max. continuous operating a.c. voltage _(power)Uc	60V	275V
Nominal current IL	0.5A	0.5A
C2 Nominal discharge current (8/20us) In	5kA	5kA
C2 Max. discharge current(8/20μs) Imax	10kA	10kA
Voltage protection level [line-line/shield] _(RJ45)Up	≤30V	≤30V
Voltage protection level [line/shield-PG] _(RJ45)Up	≤500V	≤500V
Voltage protection level _(power)Up	≤200V	≤1.2kV
Response time [line-line/shield] tA	≤1ns	≤1ns
Response time [line/shield-PG] tA	≤100ns	≤100ns
Operating temperature range Tu	-40℃…+80℃	-40℃…+80℃
Connection input/output RJ45/Power	RJ45/Terminal block	RJ45/Terminal block
Bandwidth	30Mbps	30Mbps
Insertion loss	≤0.3dB	≤0.3dB
Enclosure material	aluminium alloy	aluminium alloy
Degree of protection	IP20	IP20
Order Code	D9050	D9051

Technology characteristic:

10kA Dữ liệu camera quan sát SPD Bộ bảo vệ chống sét giám sát video Tăng đột biến Thiết bị đầu cuối RJ45 0

Application:

• Designed to protect monitor equipments (Power, Ethernet), widely applied in bank monitor & safe
guard system.
• Suitable to video monitoring systems for protection from surge, over voltage and electrostatic
induced from lightning stroke.
• Monitor equipment for school, enterprise, road etc. security and protection. CCTV camera,dome camera.
• Suitable for lightning protection of power and video transmission.

Advantage:

• Easy installation and maintenance free.
• Low insertion loss.
• Quick response.
• Multiple stage protection configuration with high current discharge ability and low protection voltage.
• High quality components ensure the fast response and reliable performance.
• Interface of the surge protective device match to the equipment interface for easy connection.
• Protection circuits for over current and overheating ensures reliability, safety and flame-retardant property.

Our Services:

• Professional manufacturer, 17 years global leading profession manufacture of electrical products
surge arrester.
• Prompt response: Any inquiries will be replied within 24 hours.
• OEM/ODM available.
• Standard packaging, and you can also tell us your own requirements on packaging.
• All products in accordance with the IEC the international standard.
• Faster delivery.
• Individually Tested Prior to Shipment.

What is IEC 61643-21 standards?

• IEC 61643-21: Low-voltage surge protective devices; Part 21: Surge protective devices
connected to telecommunications and signalling networks; Performance requirements and
testing methods.
• The test categories for surge protective devices connected to telecommunications and signalling
networks are defined in these standards.

Workshop:

10kA Dữ liệu camera quan sát SPD Bộ bảo vệ chống sét giám sát video Tăng đột biến Thiết bị đầu cuối RJ45 0

Shipping:

Certificate:

FAQ:

Q1: How and how long can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality. Then after you send us
confirmed files, the samples will be ready for delivery in 7-10 days. The samples will be sent to you
via express and arrive in 5-7 workdays.

Q2: How to order our product ?
A: Please tell us the model and quantity and other request you need; We make the PI for you; After you
confirm the PI, we arrange the order for you after receiving your payment; After the goods finished,
we send the goods out to you and tell you the tracking number; We will track your goods until you
receive the goods.

Q3: Can I have a visit to your factory before the order?
A: Welcome! Our factory address: Block 1, BoTongHuiGu Industrial Park, Yueqing Economic
Developement Zone, Yueqing, Zhejiang, China.
