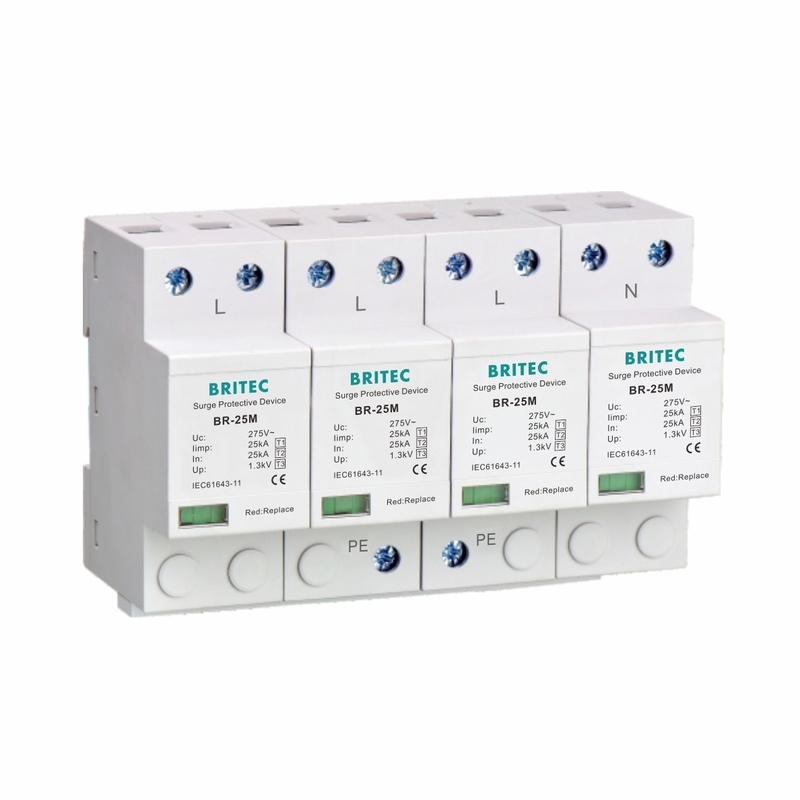

Name: 25KA T1 Surge Protector 4P Surge Protection Device Type 1+2+3
Brand: BRITEC
SKU: BR-25M 4P
Price: 1 USD
Availability: InStock
Rating: 4.6 (175 reviews)

Nhà Sản phẩm Thiết bị bảo vệ tăng tốc loại 1

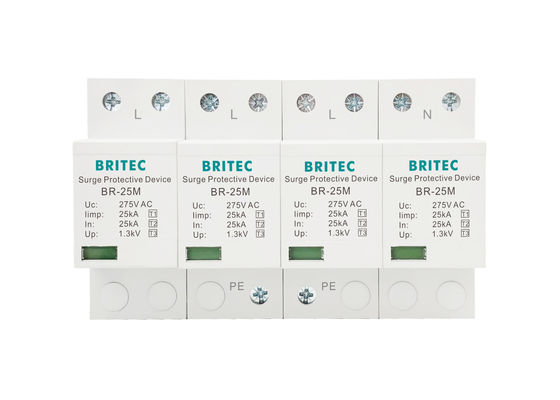

25KA T1 Surge Protector 4P Surge Protection Device Type 1+2+3

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Trung Quốc
Hàng hiệu:	BRITEC
Số mô hình:	BR-25M 4P

Thanh toán:

Số lượng đặt hàng tối thiểu:	100 Cái/Cái
chi tiết đóng gói:	xuất khẩu đóng gói
Thời gian giao hàng:	Vận chuyển trong 15 ngày sau khi thanh toán
Điều khoản thanh toán:	L/C, D/A, T/T, Công Đoàn Phương Tây
Khả năng cung cấp:	50000 Piece / Pieces Tháng

Tiếp xúc

Chi tiết sản phẩm

Thương hiệu:	BRITEC	Người mẫu:	BR-25M 4P
Tên mục:	Thiết bị chống sét lan truyền	tiêu chuẩn lớp học:	Loại 1+2+3
UC:	275V	tôi:	25kA
người Ba Lan:	4P	lớp bảo vệ:	IP20
Nhiệt độ hoạt động:	-40℃—80℃	Vật liệu:	Nhựa nhiệt dẻo UL94-V0
Điểm nổi bật:	25KA T1 Surge Protector , Type1 4P Surge Protector , BRITEC Type 1 Surge Protection Device

T1 Surge Protector 25KA 4P Surge Protection Device Presentation:

• Can be used in TN-S systems

• The surge arrester meets the requirements of IEC61643-11

• The unit is designed to be used between Zone O and Zone 1 (according to IEC62305-4 definition of Lightning Protection Area).

• The product is mainly used for the Class I protection of the power system.

• The product is mainly 10/350 waveform, up to 25KA

• Installed in the main power distribution

T1 Surge Protector 25KA 4P Surge Protection Device Technology characteristic:

	BR-25M 4P
SPD classification according to EN61643-11 with 5M	Type 1 + Type 2 + Type 3
SPD classification according to IEC61643-11 with 5M	Class I + Class II + Class III
Rated operating voltage Un	400V
Max. continuous operating a.c. voltage Uc	275V
Voltage protection level Up	≤1.3kV
Lightning impulse current (10/350us) Iimp	25kA
Nominal discharge current (8/20us) In	25kA
Maximum discharge current (8/20us) Imax	100kA
Response time tA	≤25ns
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
Max. backup fuse	315A gG
Operating temperature range Tu	-40℃—80℃
Relative humudity(25°C)	≤95%
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0

Dimension:

25KA T1 Surge Protector 4P Surge Protection Device Type 1+2+3 0

T1 Surge Protector 25KA 4P Surge Protection Device Product installation instructions:

• Power must be cut off before installation. Live operation is prohibited.

• It is recommended that a fuse or circuit breaker be connected in series at the front end of the surge protection.

• SPD is installed in parallel at the power supply inlet end of the building distribution box or the equipment room. The product is installed in the guide rail type. If conditions permit, the Kevin connection mode can be adopted.

• During installation, connect the device according to the installation diagram, where L is the phase line,N is the neutral line, and PE is the ground line. Do not misconnect the device. After the installation is complete, turn on the automatic circuit breaker and check whether the working status is normal.

• When the SPD is in use, check the status of the fault display window regularly. If the fault display window is red or the remote terminal outputs an alarm signal, it indicates that the SPD is faulty and should be repaired or replaced in time.

• Suitable for indoor operation, such as installed in the outdoor, must be equipped with waterproof shell.

About us:

Wenzhou Britec Electric Co.,Ltd as a manufature established in year 2003, specilized in Surge arrester with more than 17 years. We are a high-tech enterprise of Zhejiang province, also passed ISO 9001.

Our certification:

FAQ:

Q1: Can the price be negotiated?
A: Yes, the price is negotiable. It can be changed according to your quantity.

Q2: Are your surge protector supported for customization?
A: Yes, of course.

Q3: How can you ensure your After-sales Service?
A: We do it in strict accordance with the contract, so that customers can buy our products with confidence.

Q4: Are you a trading company or a manufacturer?
A: We are manufacturer and exporter in the industry, so we can supply product for you with Factory Price.
